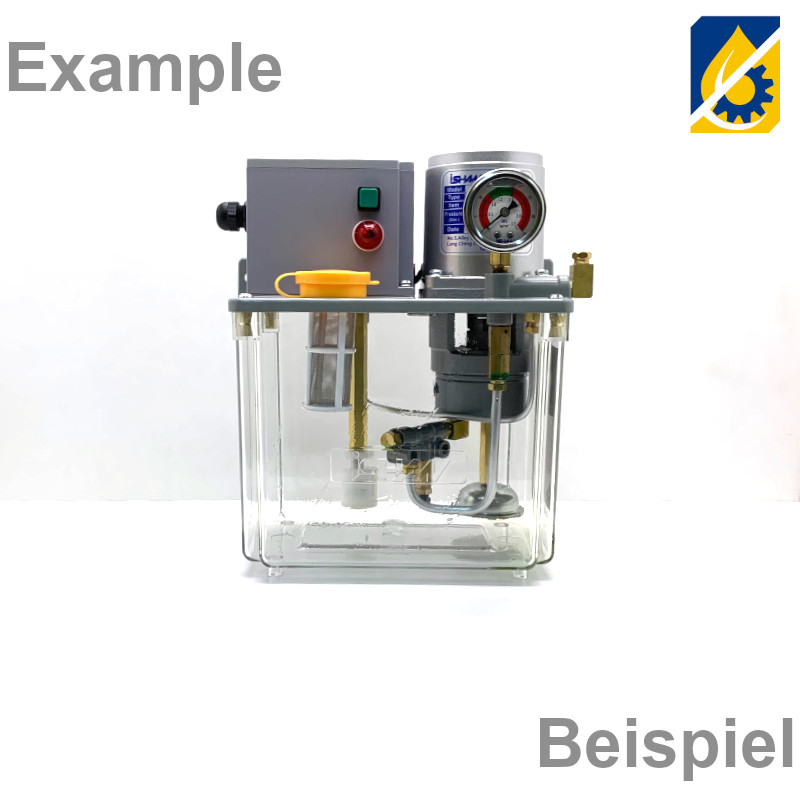

YAJ-B2P2-3L Compact oil unit
-15%
The compact pump type YAJ-B2P2
is designed for oil feed systems with 2 to approx. 50 lubrication points (depending on the delivery volume of the doses)
- Delivery rate: 0,15 ltr./min
- Pumping medium: oil or synthetic oil, viscosity 30 - 2500 mm²/sec
- Operating pressure: 20 bar
- Tank capacity: 3,0 ltr. Plastic tank
- Voltage: 230 V, 50/60 HZ - 110 V an 24V on request
- Rated current: 0,55 A
- Protection class:: IP 54
- Electrical connection: 1 cable gland
- Operating temperature: +10⁰C to 40⁰C
- Empty signal built-in, function as NC contact
- Pressure indicator: Pressure gauge
- Pressure switch: 20 barbuilt-in, function as NC contact
- Push button: Additional lubrication by hand
- Filling: Filling funnel with dust cap and filling sieve
- Pump outlet: screw fitting suitable for tube Ø 6 mm
- Control: without
- Unit: CE certificate and ISO 9001 certified
This pump unit is suitable for single-line systems in conjunction with oil piston distributors (pre-lubrication/post-lubrication distributors). Compatible with all distributor versions that require relief.
The built-in pressure relief valve in the pump unit ensures perfect functioning of the piston distributors.
Elektrischer Anschlußplan:
