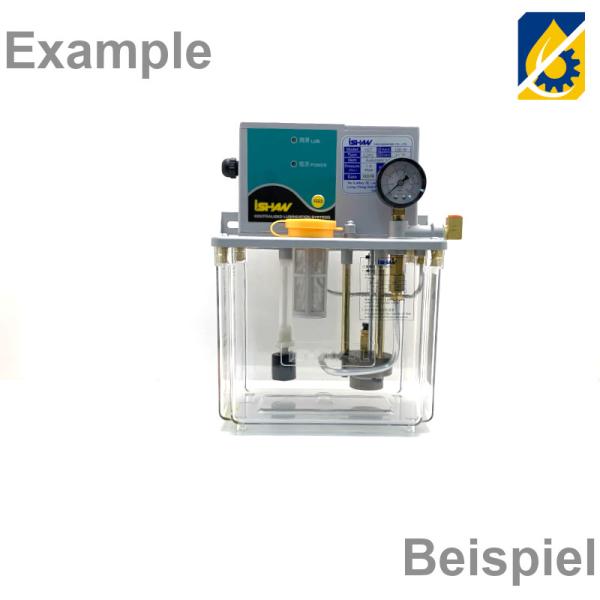

YET-C2P2-3L Compact oil unit

The compact pump type YET-C2P2 - 3 litre version

is specially designed for oil injection systems with up to 20 lubrication points.

• Delivery rate: 0.15 ltr./min
  Pumping medium: oil or synthetic oil, viscosity 0 - 1500 mm²/sec
  Operating pressure: 15 bar
  Tank capacity: 3.0 ltr. plastic tank
  Voltage: 230 V, 50/60 HZ - 110 V on request
  Rated current: 0.55 A
  Protection class: IP 54
  Electrical connection: 1 cable gland
  Operating temperature: +10⁰C to 40⁰C
  Empty signal
  Pressure indicator: Pressure gauge
  Pressure switch
  Filling: Filling funnel with dust cap and filling sieve
  Pump outlet: screw connection suitable for tube Ø 6 mm
  Control: via customer SPS
  Unit: CE certificate and ISO 9001 certified

This pump unit is ideally suited for use in discharge systems with oil piston distributors as well as from other manufacturers.
The built-in pressure relief valve in the pump unit ensures perfect functioning of the piston distributors.
